Zammad tries to connect TLSv1 instead of TLS v1.2

Technical assistance
1

Infos:

  • Used Zammad version: 6.3.1
  • Used Zammad installation type: docker-compose
  • Operating system: Ubuntu 22.04
  • Browser + version: Firefox 113

Expected behavior:

  • Zammad expected to connect to DC using LDAPS on port 636 with TLS v1.2

Actual behavior:

  • Ldap integration error message “Can’t connect to ‘ldap.bla.bla’ on port ‘636’, Connection reset by peer - SSL_connect”

Steps to reproduce the behavior:

  • Clean install
  • enable LDAP integration

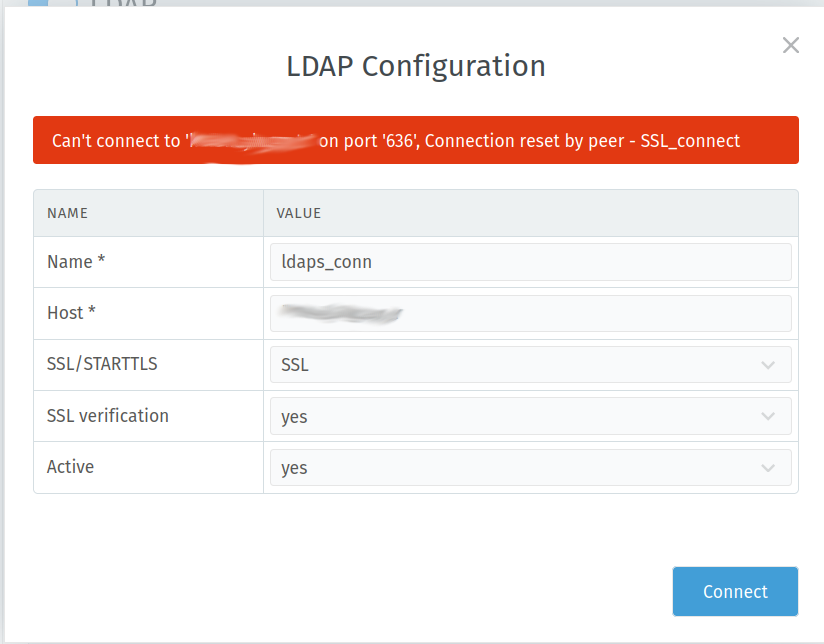

  • fill in the LAP configuration form (image attached)
  • Can’t connect on port 636

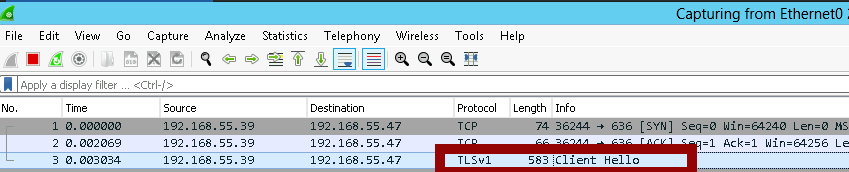

  • I installed wireshark on DC and the connection fails at the first “Client Hello” tls step. Client Hello from Zammad is TLS v1. openssl s_client also tries to connect TLS v1 on zammad server and the rails docker image.

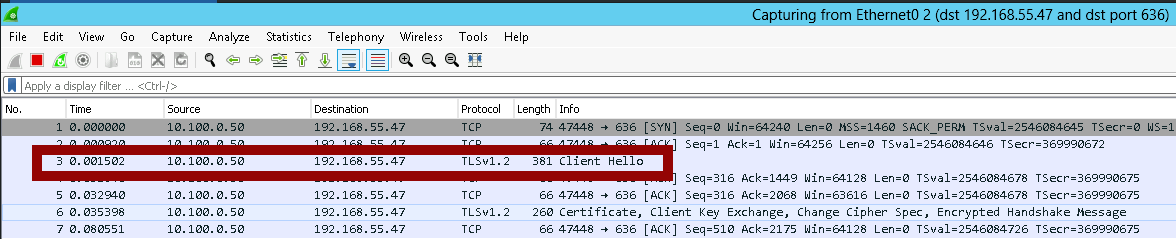

  • Tested another server with openssl s_client -connect to successfully establish (key exchange etc.) a connection TLSv1.2.

Untitled
Untitled824×644 40 KB

Untitled2
Untitled2849×172 9.12 KB

Untitled3
Untitled31176×239 15.4 KB

2

Not sure, but usually clients (just as Zammad is) would try to negotiate the connections security. Some servers do not support this (due to it being disabled) so Zammad might fall back to a lower, less secure algorithm.

Zammads docker container as of now (6.4, but also 6.3) is based on Debian 12 ‘bookworm’ which -by default- has the following cipher support:

openssl ciphers -v
TLS_AES_256_GCM_SHA384         TLSv1.3 Kx=any      Au=any   Enc=AESGCM(256)            Mac=AEAD
TLS_CHACHA20_POLY1305_SHA256   TLSv1.3 Kx=any      Au=any   Enc=CHACHA20/POLY1305(256) Mac=AEAD
TLS_AES_128_GCM_SHA256         TLSv1.3 Kx=any      Au=any   Enc=AESGCM(128)            Mac=AEAD
ECDHE-ECDSA-AES256-GCM-SHA384  TLSv1.2 Kx=ECDH     Au=ECDSA Enc=AESGCM(256)            Mac=AEAD
ECDHE-RSA-AES256-GCM-SHA384    TLSv1.2 Kx=ECDH     Au=RSA   Enc=AESGCM(256)            Mac=AEAD
DHE-RSA-AES256-GCM-SHA384      TLSv1.2 Kx=DH       Au=RSA   Enc=AESGCM(256)            Mac=AEAD
ECDHE-ECDSA-CHACHA20-POLY1305  TLSv1.2 Kx=ECDH     Au=ECDSA Enc=CHACHA20/POLY1305(256) Mac=AEAD
ECDHE-RSA-CHACHA20-POLY1305    TLSv1.2 Kx=ECDH     Au=RSA   Enc=CHACHA20/POLY1305(256) Mac=AEAD
DHE-RSA-CHACHA20-POLY1305      TLSv1.2 Kx=DH       Au=RSA   Enc=CHACHA20/POLY1305(256) Mac=AEAD
ECDHE-ECDSA-AES128-GCM-SHA256  TLSv1.2 Kx=ECDH     Au=ECDSA Enc=AESGCM(128)            Mac=AEAD
ECDHE-RSA-AES128-GCM-SHA256    TLSv1.2 Kx=ECDH     Au=RSA   Enc=AESGCM(128)            Mac=AEAD
DHE-RSA-AES128-GCM-SHA256      TLSv1.2 Kx=DH       Au=RSA   Enc=AESGCM(128)            Mac=AEAD
ECDHE-ECDSA-AES256-SHA384      TLSv1.2 Kx=ECDH     Au=ECDSA Enc=AES(256)               Mac=SHA384
ECDHE-RSA-AES256-SHA384        TLSv1.2 Kx=ECDH     Au=RSA   Enc=AES(256)               Mac=SHA384
DHE-RSA-AES256-SHA256          TLSv1.2 Kx=DH       Au=RSA   Enc=AES(256)               Mac=SHA256
ECDHE-ECDSA-AES128-SHA256      TLSv1.2 Kx=ECDH     Au=ECDSA Enc=AES(128)               Mac=SHA256
ECDHE-RSA-AES128-SHA256        TLSv1.2 Kx=ECDH     Au=RSA   Enc=AES(128)               Mac=SHA256
DHE-RSA-AES128-SHA256          TLSv1.2 Kx=DH       Au=RSA   Enc=AES(128)               Mac=SHA256
ECDHE-ECDSA-AES256-SHA         TLSv1   Kx=ECDH     Au=ECDSA Enc=AES(256)               Mac=SHA1
ECDHE-RSA-AES256-SHA           TLSv1   Kx=ECDH     Au=RSA   Enc=AES(256)               Mac=SHA1
DHE-RSA-AES256-SHA             SSLv3   Kx=DH       Au=RSA   Enc=AES(256)               Mac=SHA1
ECDHE-ECDSA-AES128-SHA         TLSv1   Kx=ECDH     Au=ECDSA Enc=AES(128)               Mac=SHA1
ECDHE-RSA-AES128-SHA           TLSv1   Kx=ECDH     Au=RSA   Enc=AES(128)               Mac=SHA1
DHE-RSA-AES128-SHA             SSLv3   Kx=DH       Au=RSA   Enc=AES(128)               Mac=SHA1
RSA-PSK-AES256-GCM-SHA384      TLSv1.2 Kx=RSAPSK   Au=RSA   Enc=AESGCM(256)            Mac=AEAD
DHE-PSK-AES256-GCM-SHA384      TLSv1.2 Kx=DHEPSK   Au=PSK   Enc=AESGCM(256)            Mac=AEAD
RSA-PSK-CHACHA20-POLY1305      TLSv1.2 Kx=RSAPSK   Au=RSA   Enc=CHACHA20/POLY1305(256) Mac=AEAD
DHE-PSK-CHACHA20-POLY1305      TLSv1.2 Kx=DHEPSK   Au=PSK   Enc=CHACHA20/POLY1305(256) Mac=AEAD
ECDHE-PSK-CHACHA20-POLY1305    TLSv1.2 Kx=ECDHEPSK Au=PSK   Enc=CHACHA20/POLY1305(256) Mac=AEAD
AES256-GCM-SHA384              TLSv1.2 Kx=RSA      Au=RSA   Enc=AESGCM(256)            Mac=AEAD
PSK-AES256-GCM-SHA384          TLSv1.2 Kx=PSK      Au=PSK   Enc=AESGCM(256)            Mac=AEAD
PSK-CHACHA20-POLY1305          TLSv1.2 Kx=PSK      Au=PSK   Enc=CHACHA20/POLY1305(256) Mac=AEAD
RSA-PSK-AES128-GCM-SHA256      TLSv1.2 Kx=RSAPSK   Au=RSA   Enc=AESGCM(128)            Mac=AEAD
DHE-PSK-AES128-GCM-SHA256      TLSv1.2 Kx=DHEPSK   Au=PSK   Enc=AESGCM(128)            Mac=AEAD
AES128-GCM-SHA256              TLSv1.2 Kx=RSA      Au=RSA   Enc=AESGCM(128)            Mac=AEAD
PSK-AES128-GCM-SHA256          TLSv1.2 Kx=PSK      Au=PSK   Enc=AESGCM(128)            Mac=AEAD
AES256-SHA256                  TLSv1.2 Kx=RSA      Au=RSA   Enc=AES(256)               Mac=SHA256
AES128-SHA256                  TLSv1.2 Kx=RSA      Au=RSA   Enc=AES(128)               Mac=SHA256
ECDHE-PSK-AES256-CBC-SHA384    TLSv1   Kx=ECDHEPSK Au=PSK   Enc=AES(256)               Mac=SHA384
ECDHE-PSK-AES256-CBC-SHA       TLSv1   Kx=ECDHEPSK Au=PSK   Enc=AES(256)               Mac=SHA1
SRP-RSA-AES-256-CBC-SHA        SSLv3   Kx=SRP      Au=RSA   Enc=AES(256)               Mac=SHA1
SRP-AES-256-CBC-SHA            SSLv3   Kx=SRP      Au=SRP   Enc=AES(256)               Mac=SHA1
RSA-PSK-AES256-CBC-SHA384      TLSv1   Kx=RSAPSK   Au=RSA   Enc=AES(256)               Mac=SHA384
DHE-PSK-AES256-CBC-SHA384      TLSv1   Kx=DHEPSK   Au=PSK   Enc=AES(256)               Mac=SHA384
RSA-PSK-AES256-CBC-SHA         SSLv3   Kx=RSAPSK   Au=RSA   Enc=AES(256)               Mac=SHA1
DHE-PSK-AES256-CBC-SHA         SSLv3   Kx=DHEPSK   Au=PSK   Enc=AES(256)               Mac=SHA1
AES256-SHA                     SSLv3   Kx=RSA      Au=RSA   Enc=AES(256)               Mac=SHA1
PSK-AES256-CBC-SHA384          TLSv1   Kx=PSK      Au=PSK   Enc=AES(256)               Mac=SHA384
PSK-AES256-CBC-SHA             SSLv3   Kx=PSK      Au=PSK   Enc=AES(256)               Mac=SHA1
ECDHE-PSK-AES128-CBC-SHA256    TLSv1   Kx=ECDHEPSK Au=PSK   Enc=AES(128)               Mac=SHA256
ECDHE-PSK-AES128-CBC-SHA       TLSv1   Kx=ECDHEPSK Au=PSK   Enc=AES(128)               Mac=SHA1
SRP-RSA-AES-128-CBC-SHA        SSLv3   Kx=SRP      Au=RSA   Enc=AES(128)               Mac=SHA1
SRP-AES-128-CBC-SHA            SSLv3   Kx=SRP      Au=SRP   Enc=AES(128)               Mac=SHA1
RSA-PSK-AES128-CBC-SHA256      TLSv1   Kx=RSAPSK   Au=RSA   Enc=AES(128)               Mac=SHA256
DHE-PSK-AES128-CBC-SHA256      TLSv1   Kx=DHEPSK   Au=PSK   Enc=AES(128)               Mac=SHA256
RSA-PSK-AES128-CBC-SHA         SSLv3   Kx=RSAPSK   Au=RSA   Enc=AES(128)               Mac=SHA1
DHE-PSK-AES128-CBC-SHA         SSLv3   Kx=DHEPSK   Au=PSK   Enc=AES(128)               Mac=SHA1
AES128-SHA                     SSLv3   Kx=RSA      Au=RSA   Enc=AES(128)               Mac=SHA1
PSK-AES128-CBC-SHA256          TLSv1   Kx=PSK      Au=PSK   Enc=AES(128)               Mac=SHA256
PSK-AES128-CBC-SHA             SSLv3   Kx=PSK      Au=PSK   Enc=AES(128)               Mac=SHA1

So I’d say it’s within technically supported scope. Can you check if your server does allow negotiation within SSL scope?
