Hello,
in my test instance I tried something similar.
For this test:
-

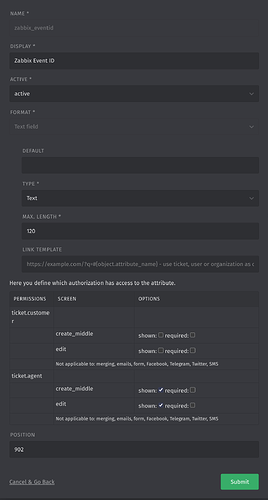

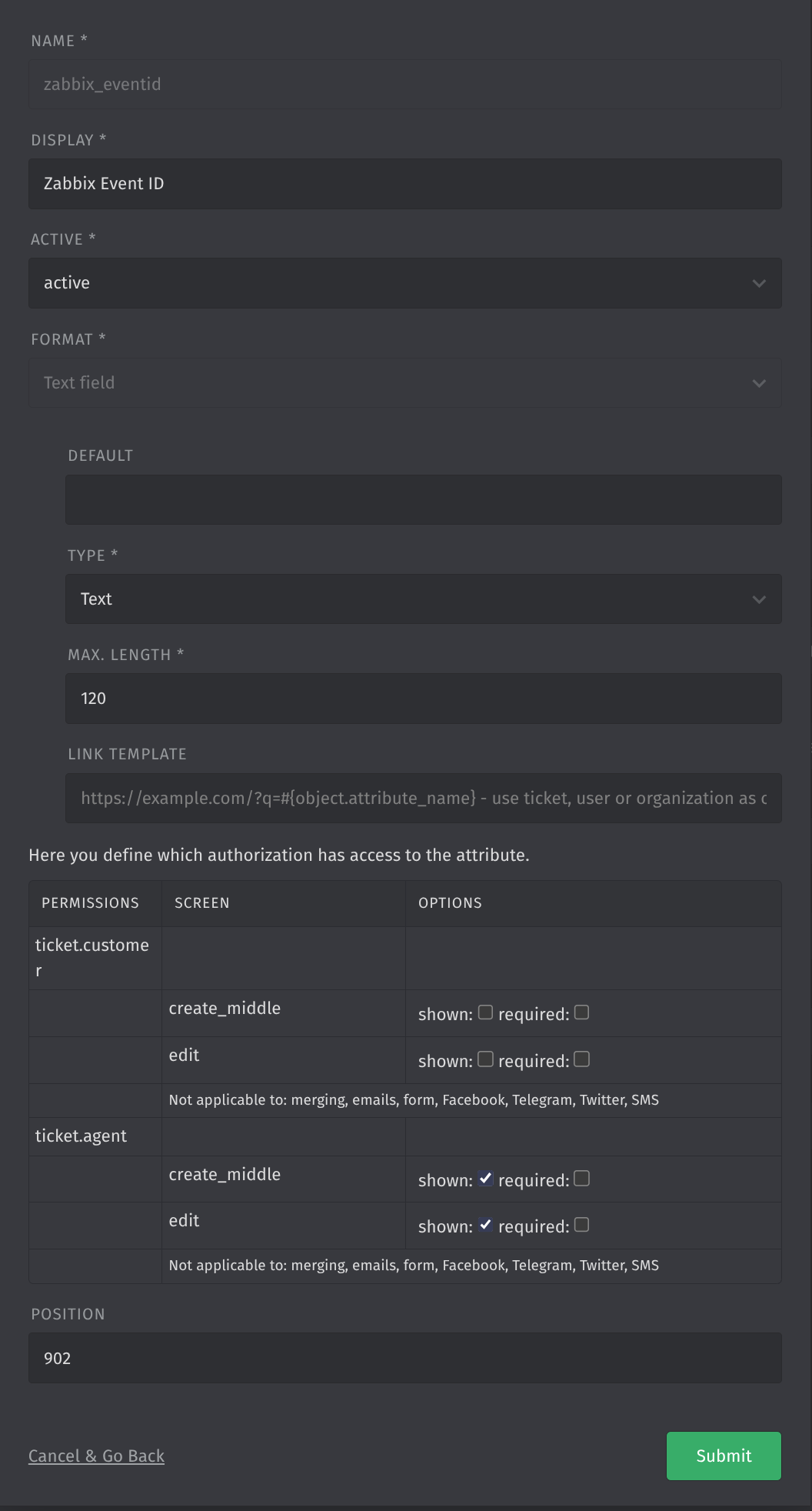

I created a ticket object called zabbix_eventid
-

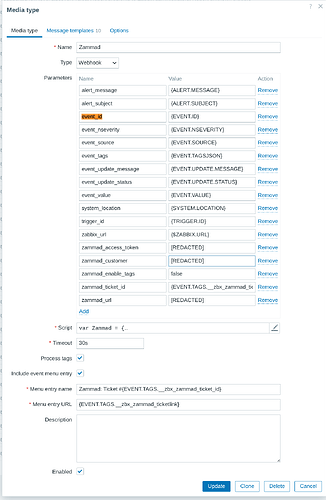

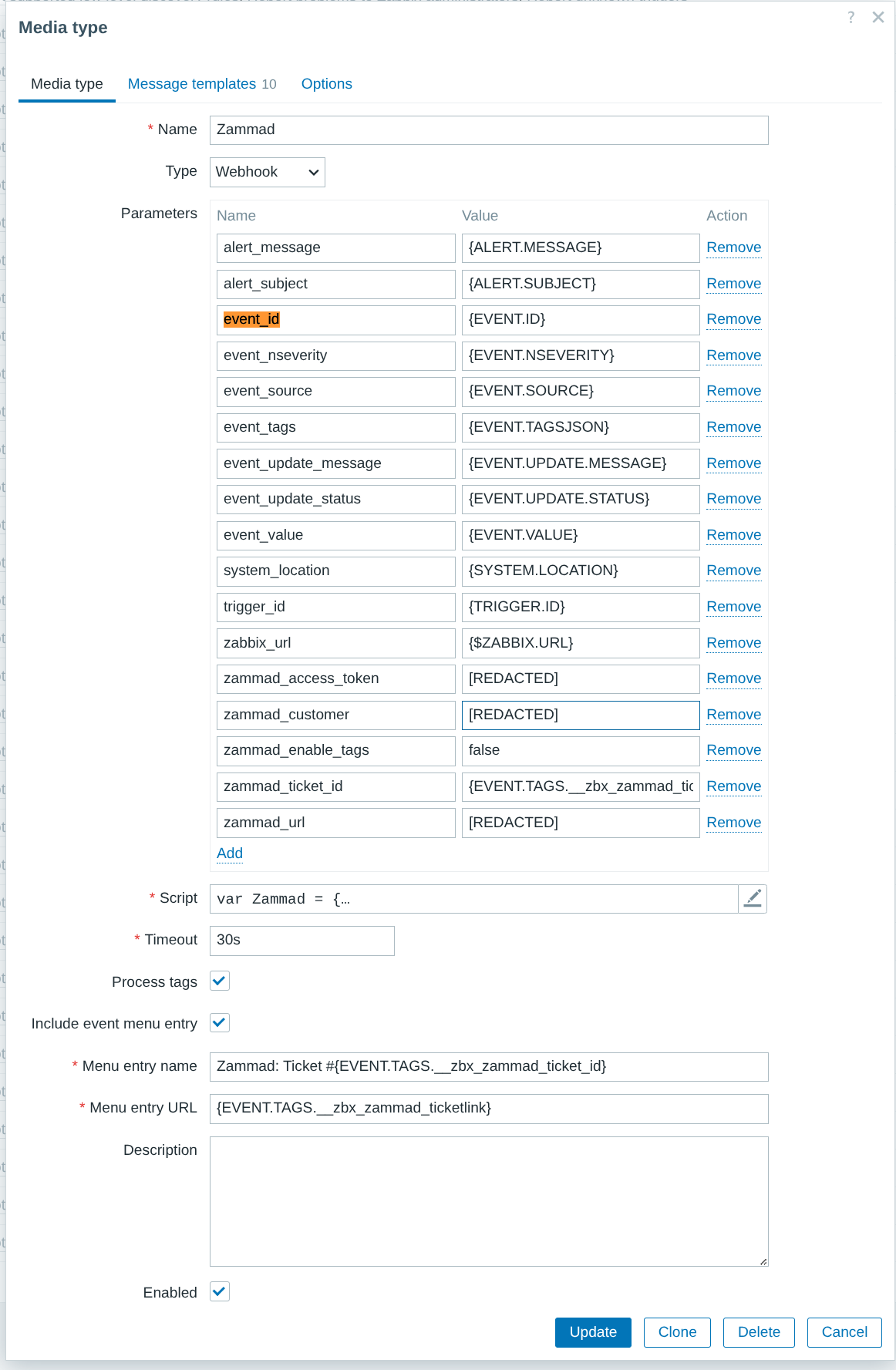

This is The media type setup in Zabbix
-
The Zabbix Event ID is recorded in the ticket itself using this script in the Zabbix media type for Zammad
var Zammad = {
params: {},
setParams: function (params) {
if (typeof params !== 'object') {
return;
}
Zammad.params = params;
if (typeof Zammad.params.url === 'string') {
if (!Zammad.params.url.endsWith('/')) {
Zammad.params.url += '/';
}
}
},
request: function (method, query, data) {
['url', 'access_token'].forEach(function (field) {
if (typeof Zammad.params !== 'object' || typeof Zammad.params[field] === 'undefined'
|| Zammad.params[field] === '' ) {
throw 'Required param is not set: "' + field + '".';
}
});
var response,
url = Zammad.params.url + query,
request = new HttpRequest();
if (typeof Zammad.HTTPProxy === 'string' && Zammad.HTTPProxy.trim() !== '') {
request.setProxy(Zammad.HTTPProxy);
}
request.addHeader('Content-Type: application/json');
request.addHeader('Authorization: Token token=' + Zammad.params.access_token);
if (typeof data !== 'undefined') {
data = JSON.stringify(data);
}
Zabbix.log(4, '[ Zammad Webhook ] Sending request: ' +
url + ((typeof data === 'string') ? (' ' + data) : ''));
switch (method) {
case 'get':
response = request.get(url, data);
break;
case 'post':
response = request.post(url, data);
break;
case 'put':
response = request.put(url, data);
break;
default:
throw 'Unsupported HTTP request method: ' + method;
}
Zabbix.log(4, '[ Zammad Webhook ] Received response with status code ' + request.getStatus() + ': ' + response);
if (response !== null) {
try {
response = JSON.parse(response);
}
catch (error) {
Zabbix.log(4, '[ Zammad Webhook ] Failed to parse response received from Zammad');
response = null;
}
}
if (request.getStatus() < 200 || request.getStatus() >= 300) {
var message = 'Request failed with status code ' + request.getStatus();
if (response !== null && typeof response.errors !== 'undefined'
&& Object.keys(response.errors).length > 0) {
message += ': ' + JSON.stringify(response.errors);
}
else if (response !== null && typeof response.errorMessages !== 'undefined'
&& Object.keys(response.errorMessages).length > 0) {
message += ': ' + JSON.stringify(response.errorMessages);
}
throw message + ' Check debug log for more information.';
}
return {
status: request.getStatus(),
response: response
};
},
setTicketTags: function (tags, ticket_id) {
var data = {
item: '',
object: 'Ticket',
o_id: ticket_id
};
try {
var tags_json = JSON.parse(tags),
result;
for (var i in tags_json) {
if (tags_json[i].value) {
data.item = tags_json[i].tag + ": " + tags_json[i].value;
} else {
data.item = tags_json[i].tag;
}
result = Zammad.request('post', 'api/v1/tags/add', data);
if (typeof result.response !== 'object' || result.status != 200) {
Zabbix.log(4, '[ Zammad Webhook ] Cannot add ticket tag:' + tags_json[i].tag);
}
}
}
catch (error) {
Zabbix.log(4, '[ Zammad Webhook ] Failed to add ticket tags:' + error);
}
return;
},
createTicket: function(subject, message, priority, zabbix_eventid) {
var data = {
title: subject,
group: 'Postmaster',
article: {
body: message,
type: 'note',
internal: false
},
customer: Zammad.params.customer
};
if (priority) {
data.priority_id = priority;
}
// Add zabbix_eventid if provided
if (zabbix_eventid) {
data.zabbix_eventid = zabbix_eventid;
}
var result = Zammad.request('post', 'api/v1/tickets', data);
if (typeof result.response !== 'object'
|| typeof result.response.id === 'undefined'
|| result.status != 201) {
throw 'Cannot create Zammad ticket. Check debug log for more information.';
}
return result.response.id;
},
updateTicket: function(subject, message) {
var data = {
ticket_id: Zammad.params.ticket_id,
body: message || '',
type: 'note',
internal: false
};
var result = Zammad.request('post', 'api/v1/ticket_articles', data);
if (typeof result.response !== 'object'
|| typeof result.response.id === 'undefined'
|| result.status != 201) {
throw 'Cannot update Zammad ticket. Check debug log for more information.';
}
}
};
try {
var params = JSON.parse(value),
params_zammad = {},
params_update = {},
result = {tags: {}},
required_params = [
'alert_subject', 'customer',
'event_source', 'event_value',
'event_update_status'
],
severities = [
{name: 'not_classified', color: '#97AAB3'},
{name: 'information', color: '#7499FF'},
{name: 'warning', color: '#FFC859'},
{name: 'average', color: '#FFA059'},
{name: 'high', color: '#E97659'},
{name: 'disaster', color: '#E45959'},
{name: 'resolved', color: '#009900'},
{name: null, color: '#000000'}
],
priority;
Object.keys(params)
.forEach(function (key) {
if (key.startsWith('zammad_')) {
params_zammad[key.substring(7)] = params[key].trim();
}
else if (key.startsWith('event_update_')) {
params_update[key.substring(13)] = params[key];
}
else if (required_params.indexOf(key) !== -1 && params[key].trim() === '') {
throw 'Parameter "' + key + '" cannot be empty.';
}
});
if ([0, 1, 2, 3].indexOf(parseInt(params.event_source)) === -1) {
throw 'Incorrect "event_source" parameter given: ' + params.event_source + '\nMust be 0-3.';
}
// Check {EVENT.VALUE} for trigger-based and internal events.
if (params.event_value !== '0' && params.event_value !== '1'
&& (params.event_source === '0' || params.event_source === '3')) {
throw 'Incorrect "event_value" parameter given: ' + params.event_value + '\nMust be 0 or 1.';
}
// Check {EVENT.UPDATE.STATUS} only for trigger-based events.
if (params.event_source === '0' && params.event_update_status !== '0' && params.event_update_status !== '1') {
throw 'Incorrect "event_update_status" parameter given: ' + params.event_update_status + '\nMust be 0 or 1.';
}
if (params.event_source !== '0' && params.event_value === '0') {
throw 'Recovery operations are supported only for trigger-based actions.';
}
if (params.event_source === '0'
&& ((params.event_value === '1' && params.event_update_status === '1')
|| (params.event_value === '0'
&& (params.event_update_status === '0' || params.event_update_status === '1')))
&& (isNaN(parseInt(params.zammad_ticket_id)) || parseInt(params.zammad_ticket_id) < 1 )) {
throw 'Incorrect "zammad_ticket_id" parameter given: ' + params.zammad_ticket_id +
'\nMust be positive integer.';
}
if ([0, 1, 2, 3, 4, 5].indexOf(parseInt(params.event_nseverity)) === -1) {
params.event_nseverity = '7';
}
if (params.event_value === '0') {
params.event_nseverity = '6';
}
priority = params['severity_' + severities[params.event_nseverity].name];
priority = priority && priority.trim() || severities[7].name;
Zammad.setParams(params_zammad);
Zammad.HTTPProxy = params.HTTPProxy;
// Create ticket for non trigger-based events.
if (params.event_source !== '0'
&& params.event_value !== '0') {
Zammad.createTicket(params.alert_subject, params.alert_message, priority, params.event_id);
}
// Create ticket for trigger-based events.
else if (params.event_value === '1' && params_update.status === '0'
&& Number.isInteger(parseInt(Zammad.params.ticket_id)) === false) {
var ticket_id = Zammad.createTicket(
params.alert_subject,
params.alert_subject + '\n' + params.alert_message + '\n' +
params.zabbix_url + (params.zabbix_url.endsWith('/') ? '' : '/') +
'tr_events.php?triggerid=' + params.trigger_id + '&eventid=' + params.event_id + '\n',
priority,
params.event_id // this sets `zabbix_eventid`
);
result.tags.__zbx_zammad_ticket_id = ticket_id;
result.tags.__zbx_zammad_ticketlink = params.zammad_url +
(params.zammad_url.endsWith('/') ? '' : '/') + '#ticket/zoom/' + ticket_id;
if (Zammad.params.enable_tags.toLowerCase() === 'true') {
Zammad.setTicketTags(params.event_tags, ticket_id);
}
}
// Update created ticket for trigger-based event.
else {
Zammad.updateTicket(params.alert_subject, params.alert_message);
}
return JSON.stringify(result);
}
catch (error) {
Zabbix.log(3, '[ Zammad Webhook ] ERROR: ' + error);
throw 'Sending failed: ' + error;
}

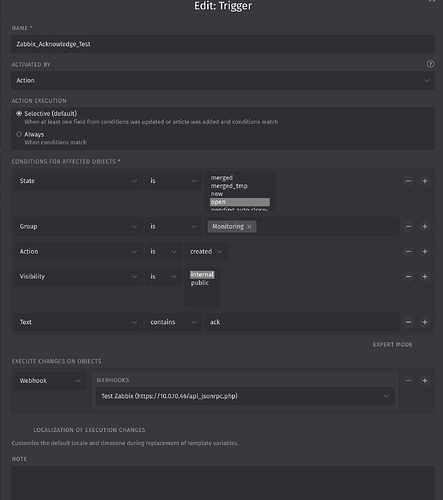

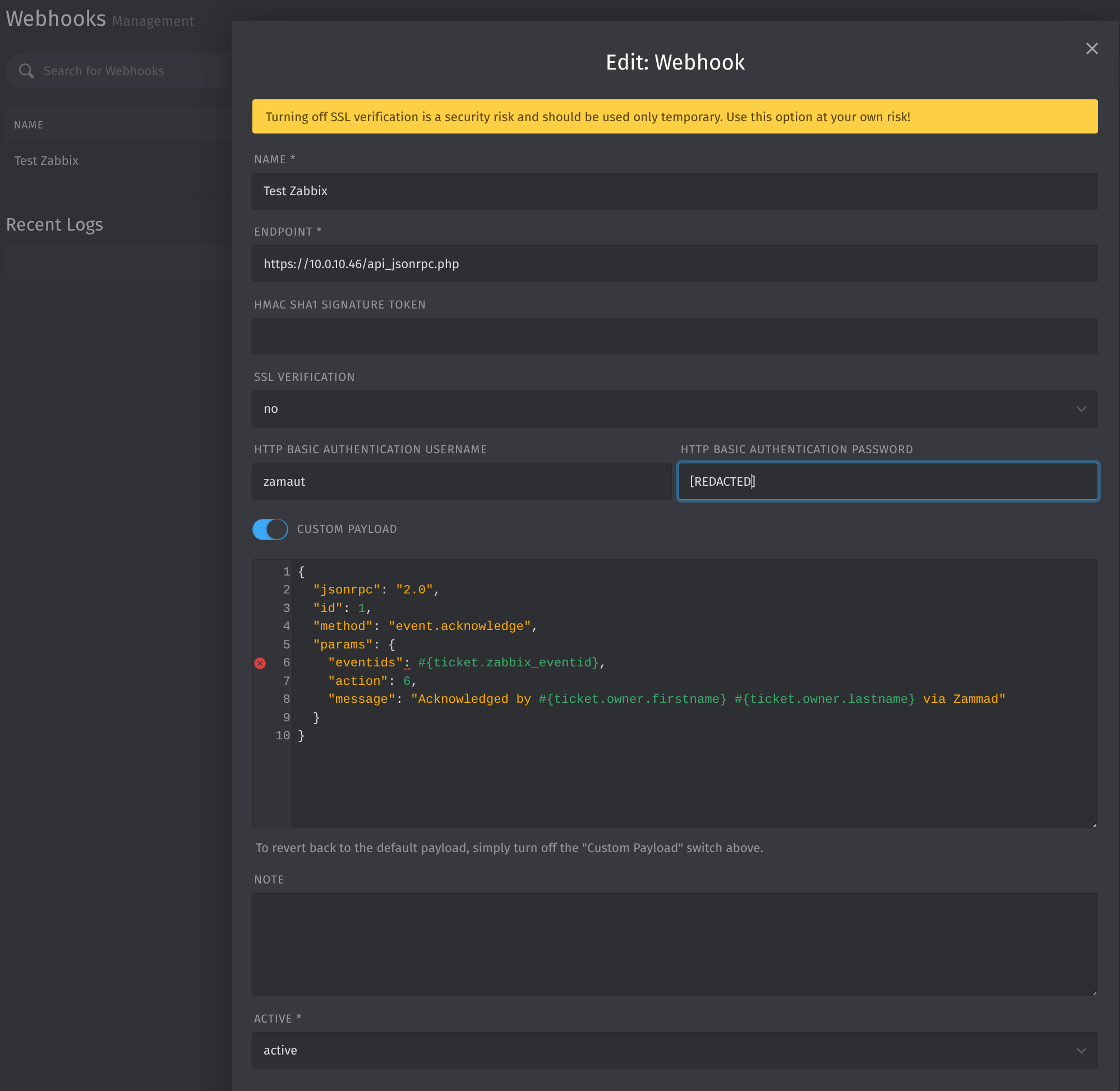

- Then a webhook that connects to Zabbix and sends an aknowledge to the issue.
{
"jsonrpc": "2.0",
"id": 1,
"method": "event.acknowledge",
"params": {
"eventids": "#{ticket.zabbix_eventid}",
"action": 6,
"message": "Acknowledged by #{ticket.owner.firstname} #{ticket.owner.lastname} via Zammad"
}
}
As far as I remember (it’s been a while now), this is how it worked.
Currently, I’m focusing on the Zabbix setup. Over the next few weeks, I’ll attempt to implement it in our production environment. I’m still exploring whether I should add additional custom fields to the ticket system, such as single-selection or multi-selection options, to improve two-way communication between Zabbix and Zammad—at least to some extent.
If anyone has better ideas or suggestions, I’m all ears!
Best,
Skip
