SAML Single Logout Service Redirect

xiojos · March 14, 2025, 3:56pm

Used Zammad version: 6.4.1-1741348581.b9a98307.bookworm
Used Zammad installation type: package
Operating system: Debian 12
Browser + version: Firefox 128.7.0esr

Expected behavior:

Redirect to Zammad login page.

Actual behavior:

Redirects to Zammad SAML metadata page.

Steps to reproduce the behavior:

Configure Keycloak in production mode with SAML client, import the Zammad metadata xml file, add user property ‘email’ mapping, and add certificate.
Master SAML Processing URL: https://zammad.domain.tld/auth/saml/metadata
Enable sign assertions
Configure Zammad with SAML SSO, HTTPS setup in nginx.
IDP SSO target URL: https://keycloak.domain.tld/realms/name/protocol/saml
IDP Single Logout target URL: https://keycloak.domain.tld/realms/name/protocol/saml
IDP Cert: cert-blob without begin/end
Name Identifier Format: urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress
SSL Verify: no
Sign in with SSO > Keycloak user > mapped to Zammad user
Sign out
Redirects to https://zammad.domain.tld/auth/saml/metadata

justeverything · April 23, 2025, 1:32pm

I have the same issue.

dominikklein · April 23, 2025, 6:07pm

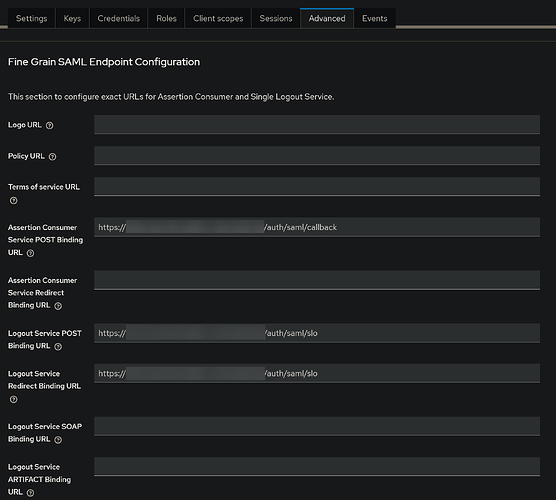

Is the logout URL on the Keycloak side configured correctly?

By clicking Sign-Out you mean inside Zammad?

JohnnyDepp · July 3, 2025, 7:50pm

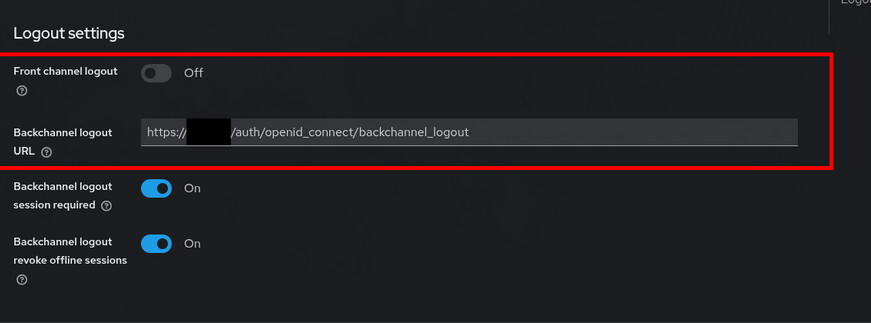

Same issue. Logged out from SAML Identify provider, but session is not terminated in Zammad. (using Microsoft Entra ID as IDP)

Is there any update in this?

dominikklein · July 4, 2025, 5:31am

Currently, we have no other reported problems when it’s configured in the correct way.

So we would need more details, for example, some logs when Zammad is called in this situation.

justeverything · August 8, 2025, 1:58pm

as I have the same issue, I’d be more than happy to provide any needed logs. Would the production log be sufficient? Because I can’t see any issues there for the logout process.

fliebe92 · August 13, 2025, 9:54am

production.log sounds like a good start.

justeverything · August 15, 2025, 10:53am

alright, here is the production.log part starting with the login procedure using SAML and the logout process. I anonymized the URL and IPs (... is always the same client!), as well as shortened the very long SAML Response string as it was just characters.

If you need a more detailed log with every information I might be able to send it in via private message as well.

I believe the part

I, [2025-08-15T12:33:13.022160#518-6990220]  INFO -- : Started POST "/auth/saml/metadata" for ***.***.***.*** at 2025-08-15 12:33:13 +0200

shows where the forward after logout is terminating.


# sign in

I, [2025-08-15T12:33:00.046000#518-6974340]  INFO -- : Started POST "/auth/saml" for ***.***.***.*** at 2025-08-15 12:33:00 +0200
I, [2025-08-15T12:33:02.743479#518-6989460]  INFO -- : Started POST "/auth/saml/callback" for ***.***.***.*** at 2025-08-15 12:33:02 +0200
I, [2025-08-15T12:33:02.782203#518-6989460]  INFO -- : Processing by SessionsController#create_omniauth as HTML
I, [2025-08-15T12:33:02.782499#518-6989460]  INFO -- :   Parameters: {"SAMLResponse"=>"PHNhbWxwOlJlc3BvbnNl[... string shortened ...] zcG9uc2U+", "provider"=>"saml"}
I, [2025-08-15T12:33:02.829460#518-6989460]  INFO -- : Redirected to https://ticket.***.de/#
I, [2025-08-15T12:33:02.831111#518-6989460]  INFO -- : Completed 302 Found in 48ms (ActiveRecord: 18.1ms (32 queries, 1 cached) | GC: 0.9ms)
I, [2025-08-15T12:33:02.856411#518-6989420]  INFO -- : Started GET "/" for ***.***.***.*** at 2025-08-15 12:33:02 +0200
I, [2025-08-15T12:33:02.859219#518-6989420]  INFO -- : Processing by InitController#index as HTML
I, [2025-08-15T12:33:02.863050#518-6989420]  INFO -- :   Rendered layout layouts/application.html.erb (Duration: 0.6ms | GC: 0.0ms)
I, [2025-08-15T12:33:02.863776#518-6989420]  INFO -- : Completed 200 OK in 4ms (Views: 0.8ms | ActiveRecord: 0.8ms (5 queries, 1 cached) | GC: 0.1ms)
I, [2025-08-15T12:33:03.138654#518-6990140]  INFO -- : Started POST "/api/v1/signshow" for ***.***.***.*** at 2025-08-15 12:33:03 +0200
I, [2025-08-15T12:33:03.142328#518-6990140]  INFO -- : Processing by SessionsController#show as JSON
I, [2025-08-15T12:33:03.142365#518-6990140]  INFO -- :   Parameters: {"fingerprint"=>"-1958592138"}
I, [2025-08-15T12:33:03.407995#518-6990140]  INFO -- : Completed 200 OK in 266ms (Views: 48.5ms | ActiveRecord: 39.4ms (342 queries, 146 cached) | GC: 23.3ms)
I, [2025-08-15T12:33:03.468637#518-6990220]  INFO -- : Started GET "/api/v1/taskbar/init?_=1755253983097" for ***.***.***.*** at 2025-08-15 12:33:03 +0200
I, [2025-08-15T12:33:03.471499#518-6990220]  INFO -- : Processing by TaskbarController#init as JSON
I, [2025-08-15T12:33:03.471535#518-6990220]  INFO -- :   Parameters: {"_"=>"1755253983097"}
I, [2025-08-15T12:33:04.103082#518-6974340]  INFO -- : Completed 200 OK in 43ms (Views: 1.2ms | ActiveRecord: 14.5ms (23 queries, 6 cached) | GC: 1.2ms)
I, [2025-08-15T12:33:04.133220#518-6989420]  INFO -- : Completed 200 OK in 48ms (Views: 1.0ms | ActiveRecord: 10.9ms (22 queries, 6 cached) | GC: 11.9ms)
I, [2025-08-15T12:33:04.651540#518-6990220]  INFO -- : Completed 200 OK in 1180ms (Views: 27.3ms | ActiveRecord: 111.3ms (1352 queries, 675 cached) | GC: 195.7ms)
I, [2025-08-15T12:33:04.720673#518-6990140]  INFO -- : Started GET "/api/v1/translations/lang/en-us?_=1755253983098" for ***.***.***.*** at 2025-08-15 12:33:04 +0200
I, [2025-08-15T12:33:04.724407#518-6990140]  INFO -- : Processing by TranslationsController#lang as JSON
I, [2025-08-15T12:33:04.724447#518-6990140]  INFO -- :   Parameters: {"_"=>"1755253983098", "locale"=>"en-us"}
I, [2025-08-15T12:33:04.763212#518-6990140]  INFO -- : Completed 200 OK in 39ms (Views: 9.9ms | ActiveRecord: 15.3ms (8 queries, 2 cached) | GC: 6.8ms)
I, [2025-08-15T12:33:04.862900#518-6989460]  INFO -- : Started GET "/api/v1/activity_stream?full=true&limit=25&_=1755253983099" for ***.***.***.*** at 2025-08-15 12:33:04 +0200
I, [2025-08-15T12:33:04.863198#518-6974340]  INFO -- : Started GET "/api/v1/first_steps?_=1755253983100" for ***.***.***.*** at 2025-08-15 12:33:04 +0200
I, [2025-08-15T12:33:04.875155#518-6989460]  INFO -- : Processing by ActivityStreamController#show as JSON
I, [2025-08-15T12:33:04.875305#518-6989460]  INFO -- :   Parameters: {"full"=>"true", "limit"=>"25", "_"=>"1755253983099"}
I, [2025-08-15T12:33:04.876634#518-6974340]  INFO -- : Processing by FirstStepsController#index as JSON
I, [2025-08-15T12:33:04.876887#518-6974340]  INFO -- :   Parameters: {"_"=>"1755253983100"}
I, [2025-08-15T12:33:04.889026#518-6974340]  INFO -- : Completed 200 OK in 12ms (Views: 0.1ms | ActiveRecord: 3.4ms (19 queries, 7 cached) | GC: 0.0ms)
I, [2025-08-15T12:33:04.954420#518-6989460]  INFO -- : Completed 200 OK in 79ms (Views: 4.4ms | ActiveRecord: 23.0ms (114 queries, 38 cached) | GC: 0.8ms)
I, [2025-08-15T12:33:04.967907#518-6989420]  INFO -- : Started GET "/api/v1/cti/log?_=1755253983101" for ***.***.***.*** at 2025-08-15 12:33:04 +0200
I, [2025-08-15T12:33:04.975619#518-6989420]  INFO -- : Processing by CtiController#index as JSON
I, [2025-08-15T12:33:04.975725#518-6989420]  INFO -- :   Parameters: {"_"=>"1755253983101"}
I, [2025-08-15T12:33:04.999040#518-6989420]  INFO -- : Completed 200 OK in 23ms (Views: 0.9ms | ActiveRecord: 2.9ms (13 queries, 6 cached) | GC: 13.1ms)
I, [2025-08-15T12:33:05.074196#518-6990220]  INFO -- : Started GET "/api/v1/ticket_overviews?_=1755253983102" for ***.***.***.*** at 2025-08-15 12:33:05 +0200
I, [2025-08-15T12:33:05.084281#518-6990220]  INFO -- : Processing by TicketOverviewsController#show as JSON
I, [2025-08-15T12:33:05.084342#518-6990220]  INFO -- :   Parameters: {"_"=>"1755253983102"}
I, [2025-08-15T12:33:05.085459#518-6990140]  INFO -- : Started GET "/api/v1/ticket_overview?_=1755253983103" for ***.***.***.*** at 2025-08-15 12:33:05 +0200
I, [2025-08-15T12:33:05.095979#518-6990140]  INFO -- : Processing by TicketOverviewsController#data as JSON
I, [2025-08-15T12:33:05.096047#518-6990140]  INFO -- :   Parameters: {"_"=>"1755253983103"}
I, [2025-08-15T12:33:05.360110#518-6990140]  INFO -- : Completed 200 OK in 260ms (Views: 2.6ms | ActiveRecord: 92.2ms (84 queries, 15 cached) | GC: 143.8ms)
I, [2025-08-15T12:33:05.485620#518-6990220]  INFO -- : Completed 200 OK in 401ms (Views: 0.3ms | ActiveRecord: 209.1ms (203 queries, 52 cached) | GC: 154.5ms)
I, [2025-08-15T12:33:05.642847#523-196140]  INFO -- : 2025-08-15T12:33:05+0200: [Worker(host:ticket pid:523)] Job UserDeviceLogJob [c14ce485-bd0c-4946-a8cd-c3125e8e767d] from DelayedJob(default) with arguments: ["Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:141.0) Gecko/20100101 Firefox/141.0", "***.***.***.***", 17, "-1958592138", "session"] (id=1429329) (queue=default) RUNNING
I, [2025-08-15T12:33:05.676120#518-6974340]  INFO -- : Started GET "/api/v1/ticket_attachment/4765/36422/22478?view=preview" for ***.***.***.*** at 2025-08-15 12:33:05 +0200
I, [2025-08-15T12:33:05.680727#518-6974340]  INFO -- : Processing by TicketArticlesController#attachment as HTML
I, [2025-08-15T12:33:05.680781#518-6974340]  INFO -- :   Parameters: {"view"=>"preview", "ticket_id"=>"4765", "article_id"=>"36422", "id"=>"22478"}
I, [2025-08-15T12:33:05.683369#518-6989460]  INFO -- : Started GET "/api/v1/ticket_attachment/4765/36422/22479?view=preview" for ***.***.***.*** at 2025-08-15 12:33:05 +0200
I, [2025-08-15T12:33:05.686094#518-6989460]  INFO -- : Processing by TicketArticlesController#attachment as HTML
I, [2025-08-15T12:33:05.686139#518-6989460]  INFO -- :   Parameters: {"view"=>"preview", "ticket_id"=>"4765", "article_id"=>"36422", "id"=>"22479"}
I, [2025-08-15T12:33:05.715009#518-6989460]  INFO -- : Sent data Screenshot 2025-08-11 174831.png (0.3ms)
I, [2025-08-15T12:33:05.716259#518-6989460]  INFO -- : Completed 200 OK in 29ms (Views: 0.2ms | ActiveRecord: 9.1ms (23 queries, 6 cached) | GC: 4.3ms)
I, [2025-08-15T12:33:05.718733#518-6974340]  INFO -- : Sent data Screenshot 2025-08-11 175024.png (0.3ms)
I, [2025-08-15T12:33:05.719628#518-6974340]  INFO -- : Completed 200 OK in 39ms (Views: 0.2ms | ActiveRecord: 13.3ms (23 queries, 6 cached) | GC: 4.3ms)
I, [2025-08-15T12:33:05.833846#518-6989420]  INFO -- : Started GET "/api/v1/ticket_attachment/4462/36453/22503?view=inline" for ***.***.***.*** at 2025-08-15 12:33:05 +0200
I, [2025-08-15T12:33:05.837491#518-6989420]  INFO -- : Processing by TicketArticlesController#attachment as HTML
I, [2025-08-15T12:33:05.837612#518-6989420]  INFO -- :   Parameters: {"view"=>"inline", "ticket_id"=>"4462", "article_id"=>"36453", "id"=>"22503"}
I, [2025-08-15T12:33:05.856756#518-6989420]  INFO -- : Sent data image1.png (0.3ms)
I, [2025-08-15T12:33:05.857686#518-6989420]  INFO -- : Completed 200 OK in 20ms (Views: 0.2ms | ActiveRecord: 5.9ms (23 queries, 6 cached) | GC: 0.6ms)
I, [2025-08-15T12:33:05.867312#518-6990140]  INFO -- : Started GET "/api/v1/ticket_attachment/4768/36454/22504?view=inline" for ***.***.***.*** at 2025-08-15 12:33:05 +0200
I, [2025-08-15T12:33:05.871182#518-6990140]  INFO -- : Processing by TicketArticlesController#attachment as HTML
I, [2025-08-15T12:33:05.871224#518-6990140]  INFO -- :   Parameters: {"view"=>"inline", "ticket_id"=>"4768", "article_id"=>"36454", "id"=>"22504"}
I, [2025-08-15T12:33:05.893453#518-6990140]  INFO -- : Sent data image1.png (0.3ms)
I, [2025-08-15T12:33:05.894592#518-6990140]  INFO -- : Completed 200 OK in 23ms (Views: 0.2ms | ActiveRecord: 3.9ms (23 queries, 6 cached) | GC: 6.2ms)
I, [2025-08-15T12:33:06.101530#518-6990220]  INFO -- : Started GET "/api/v1/ticket_attachment/4769/36462/22512?view=inline" for ***.***.***.*** at 2025-08-15 12:33:06 +0200
I, [2025-08-15T12:33:06.101802#518-6989460]  INFO -- : Started GET "/api/v1/ticket_attachment/4769/36463/22516?view=inline" for ***.***.***.*** at 2025-08-15 12:33:06 +0200
I, [2025-08-15T12:33:06.107062#518-6990220]  INFO -- : Processing by TicketArticlesController#attachment as HTML
I, [2025-08-15T12:33:06.107137#518-6990220]  INFO -- :   Parameters: {"view"=>"inline", "ticket_id"=>"4769", "article_id"=>"36462", "id"=>"22512"}
I, [2025-08-15T12:33:06.108839#518-6989460]  INFO -- : Processing by TicketArticlesController#attachment as HTML
I, [2025-08-15T12:33:06.108920#518-6989460]  INFO -- :   Parameters: {"view"=>"inline", "ticket_id"=>"4769", "article_id"=>"36463", "id"=>"22516"}
I, [2025-08-15T12:33:06.133414#518-6990220]  INFO -- : Sent data image1.png (0.3ms)
I, [2025-08-15T12:33:06.135224#518-6989460]  INFO -- : Sent data image001.png (0.4ms)
I, [2025-08-15T12:33:06.136116#518-6990220]  INFO -- : Completed 200 OK in 29ms (Views: 0.2ms | ActiveRecord: 9.5ms (23 queries, 6 cached) | GC: 0.0ms)
I, [2025-08-15T12:33:06.138033#518-6989460]  INFO -- : Completed 200 OK in 29ms (Views: 0.2ms | ActiveRecord: 12.9ms (23 queries, 6 cached) | GC: 0.0ms)
I, [2025-08-15T12:33:06.820489#523-196140]  INFO -- : 2025-08-15T12:33:06+0200: [Worker(host:ticket pid:523)] Job UserDeviceLogJob [c14ce485-bd0c-4946-a8cd-c3125e8e767d] from DelayedJob(default) with arguments: ["Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:141.0) Gecko/20100101 Firefox/141.0", "***.***.***.***", 17, "-1958592138", "session"] (id=1429329) (queue=default) COMPLETED after 1.1775
I, [2025-08-15T12:33:06.824027#523-196140]  INFO -- : 2025-08-15T12:33:06+0200: [Worker(host:ticket pid:523)] Job SearchIndexJob [f3cf77dd-a7de-420d-84e9-5c0ae59e776e] from DelayedJob(default) with arguments: ["User", 17] (id=1429327) (queue=default) RUNNING
I, [2025-08-15T12:33:06.875605#523-196140]  INFO -- : 2025-08-15T12:33:06+0200: [Worker(host:ticket pid:523)] Job SearchIndexJob [f3cf77dd-a7de-420d-84e9-5c0ae59e776e] from DelayedJob(default) with arguments: ["User", 17] (id=1429327) (queue=default) COMPLETED after 0.0515
I, [2025-08-15T12:33:06.877931#523-196140]  INFO -- : 2025-08-15T12:33:06+0200: [Worker(host:ticket pid:523)] Job SearchIndexAssociationsJob [5806bc45-3bc1-4c58-b875-e753b605eff7] from DelayedJob(default) with arguments: ["User", 17] (id=1429328)
(queue=default) RUNNING
I, [2025-08-15T12:33:07.019656#523-196140]  INFO -- : 2025-08-15T12:33:07+0200: [Worker(host:ticket pid:523)] Job SearchIndexAssociationsJob [5806bc45-3bc1-4c58-b875-e753b605eff7] from DelayedJob(default) with arguments: ["User", 17] (id=1429328)
(queue=default) COMPLETED after 0.1417
I, [2025-08-15T12:33:08.862925#523-196160]  INFO -- : ProcessScheduledJobs running...
I, [2025-08-15T12:33:08.864795#523-196160]  INFO -- : Running job thread for 'Check 'Channel' streams.' (Channel.stream) status is: sleep
I, [2025-08-15T12:33:08.864845#523-196160]  INFO -- : Running job thread for 'Process ticket escalations.' (Ticket.process_escalation) status is: sleep
I, [2025-08-15T12:33:08.865079#523-196160]  INFO -- : Running job thread for 'Check channels.' (Channel.fetch) status is: sleep
I, [2025-08-15T12:33:08.865770#523-196160]  INFO -- : Running job thread for 'Execute planned jobs.' (Job.run) status is: sleep
I, [2025-08-15T12:33:11.026730#523-196140]  INFO -- : 2025-08-15T12:33:11+0200: [Worker(host:ticket pid:523)] Job SearchIndexAssociationsJob [871c475a-153b-4486-8b7a-d63ca17a7458] from DelayedJob(default) with arguments: ["User", 17] (id=1429330)
(queue=default) RUNNING
I, [2025-08-15T12:33:11.131011#523-196140]  INFO -- : 2025-08-15T12:33:11+0200: [Worker(host:ticket pid:523)] Job SearchIndexAssociationsJob [871c475a-153b-4486-8b7a-d63ca17a7458] from DelayedJob(default) with arguments: ["User", 17] (id=1429330)
(queue=default) COMPLETED after 0.1042

# sign out

I, [2025-08-15T12:33:12.719499#518-6990140]  INFO -- : Started DELETE "/api/v1/signout" for ***.***.***.*** at 2025-08-15 12:33:12 +0200
I, [2025-08-15T12:33:12.724932#518-6990140]  INFO -- : Processing by SessionsController#destroy as JSON
I, [2025-08-15T12:33:12.733219#518-6990140]  INFO -- : Completed 200 OK in 8ms (Views: 0.2ms | ActiveRecord: 0.9ms (7 queries, 2 cached) | GC: 2.6ms)
I, [2025-08-15T12:33:12.832543#523-21795120]  INFO -- : Closing session client (608580) thread
I, [2025-08-15T12:33:13.022160#518-6990220]  INFO -- : Started POST "/auth/saml/metadata" for ***.***.***.*** at 2025-08-15 12:33:13 +0200
I, [2025-08-15T12:33:13.905998#523-19880860]  INFO -- : execute Ticket.process_escalation (try_count 0)...
I, [2025-08-15T12:33:13.907375#523-19880860]  INFO -- : ended Ticket.process_escalation took: 0.006546023 seconds.
I, [2025-08-15T12:33:15.137906#523-196140]  INFO -- : 2025-08-15T12:33:15+0200: [Worker(host:ticket pid:523)] Job SearchIndexAssociationsJob [c51fe071-f4a1-4be2-b2db-3fd2e8b81153] from DelayedJob(default) with arguments: ["User", 17] (id=1429331)
(queue=default) RUNNING
I, [2025-08-15T12:33:15.277251#523-196140]  INFO -- : 2025-08-15T12:33:15+0200: [Worker(host:ticket pid:523)] Job SearchIndexAssociationsJob [c51fe071-f4a1-4be2-b2db-3fd2e8b81153] from DelayedJob(default) with arguments: ["User", 17] (id=1429331)
(queue=default) COMPLETED after 0.1393
I, [2025-08-15T12:33:18.453222#523-21755940]  INFO -- : execute Channel.fetch (try_count 0)...
I, [2025-08-15T12:33:18.454186#523-21755940]  INFO -- : fetching imap (mail.******.de/***/***/*** port=993,ssl=true,starttls=false,folder=INBOX,keep_on_server=false,auth_type=LOGIN,ssl_verify=true)
I, [2025-08-15T12:33:18.736612#523-21755940]  INFO -- :  - no message
I, [2025-08-15T12:33:18.742809#523-21755940]  INFO -- : ended Channel.fetch took: 0.294991787 seconds.
I, [2025-08-15T12:33:18.866997#523-196160]  INFO -- : ProcessScheduledJobs running...
I, [2025-08-15T12:33:18.868622#523-196160]  INFO -- : Running job thread for 'Check 'Channel' streams.' (Channel.stream) status is: sleep
I, [2025-08-15T12:33:18.868682#523-196160]  INFO -- : Running job thread for 'Process ticket escalations.' (Ticket.process_escalation) status is: sleep
I, [2025-08-15T12:33:18.868708#523-196160]  INFO -- : Running job thread for 'Check channels.' (Channel.fetch) status is: sleep
I, [2025-08-15T12:33:18.869355#523-196160]  INFO -- : Running job thread for 'Execute planned jobs.' (Job.run) status is: sleep

another strange thing I noticed - maybe this is also the case ofr the others here:

When I sign in with keycloak and then sign out the metadata page is shown (please see the above log for that!)
Then I click on “back” in the browser and I’m still logged in → so the logout didn’t work at all
Then I click on logout again in zammad and I’m forwarded correctly the the login page of zammad and I’m logged out correctly

For 2) and 3) here is the production.log, too:

I, [2025-08-15T12:46:06.870809#518-6974340]  INFO -- : Completed 200 OK in 32ms (Views: 0.1ms | ActiveRecord: 14.4ms (23 queries, 6 cached) | GC: 0.0ms)
I, [2025-08-15T12:46:06.873732#518-7012100]  INFO -- : Completed 200 OK in 27ms (Views: 0.2ms | ActiveRecord: 14.2ms (23 queries, 6 cached) | GC: 0.0ms)
I, [2025-08-15T12:46:07.167038#518-6990140]  INFO -- : Completed 200 OK in 132ms (Views: 18.9ms | ActiveRecord: 11.0ms (102 queries, 18 cached) | GC: 42.4ms)
I, [2025-08-15T12:46:13.454227#523-196160]  INFO -- : ProcessScheduledJobs running...
I, [2025-08-15T12:46:13.468146#523-196160]  INFO -- : Running job thread for 'Check 'Channel' streams.' (Channel.stream) status is: sleep
I, [2025-08-15T12:46:13.468271#523-196160]  INFO -- : Running job thread for 'Process ticket escalations.' (Ticket.process_escalation) status is: sleep
I, [2025-08-15T12:46:13.468403#523-196160]  INFO -- : Running job thread for 'Check channels.' (Channel.fetch) status is: sleep
I, [2025-08-15T12:46:13.469339#523-196160]  INFO -- : Running job thread for 'Execute planned jobs.' (Job.run) status is: sleep
I, [2025-08-15T12:46:13.952530#518-6989460]  INFO -- : Started DELETE "/api/v1/signout" for ***.***.***.*** at 2025-08-15 12:46:13 +0200
I, [2025-08-15T12:46:13.961810#518-6989460]  INFO -- : Processing by SessionsController#destroy as JSON
I, [2025-08-15T12:46:14.067216#518-6989460]  INFO -- : Completed 200 OK in 105ms (Views: 0.1ms | ActiveRecord: 1.3ms (7 queries, 2 cached) | GC: 97.8ms)
I, [2025-08-15T12:46:14.170368#518-6974340]  INFO -- : Started GET "/auth/saml/slo?SAMLResponse=jZLBbsIwDIZfpco9TVpIoVGLNI0 [... string shortened ...] %2F7zySIg%3D%3D" for ***.***.***.*** at 2025-08-15 12:46:14 +0200
I, [2025-08-15T12:46:14.208304#518-7012100]  INFO -- : Started GET "/" for ***.***.***.*** at 2025-08-15 12:46:14 +0200
I, [2025-08-15T12:46:14.211652#518-7012100]  INFO -- : Processing by InitController#index as HTML
I, [2025-08-15T12:46:14.215162#518-7012100]  INFO -- :   Rendered layout layouts/application.html.erb (Duration: 0.7ms | GC: 0.0ms)
I, [2025-08-15T12:46:14.215937#518-7012100]  INFO -- : Completed 200 OK in 4ms (Views: 0.9ms | ActiveRecord: 0.5ms (5 queries, 1 cached) | GC: 0.1ms)
I, [2025-08-15T12:46:14.508535#518-6990140]  INFO -- : Started POST "/api/v1/signshow" for ***.***.***.*** at 2025-08-15 12:46:14 +0200
I, [2025-08-15T12:46:14.511496#518-6990140]  INFO -- : Processing by SessionsController#show as JSON
I, [2025-08-15T12:46:14.511539#518-6990140]  INFO -- :   Parameters: {"fingerprint"=>"-1958592138"}
I, [2025-08-15T12:46:14.554941#518-6990140]  INFO -- : Completed 200 OK in 43ms (Views: 2.8ms | ActiveRecord: 2.4ms (123 queries, 114 cached) | GC: 0.7ms)
I, [2025-08-15T12:46:14.581662#518-6989420]  INFO -- : Started GET "/api/v1/translations/lang/en-us?_=1755254774466" for ***.***.***.*** at 2025-08-15 12:46:14 +0200
I, [2025-08-15T12:46:14.585260#518-6989420]  INFO -- : Processing by TranslationsController#lang as JSON
I, [2025-08-15T12:46:14.585305#518-6989420]  INFO -- :   Parameters: {"_"=>"1755254774466", "locale"=>"en-us"}
I, [2025-08-15T12:46:14.625917#518-6989420]  INFO -- : Completed 200 OK in 41ms (Views: 10.2ms | ActiveRecord: 19.6ms (6 queries, 1 cached) | GC: 5.8ms)
I, [2025-08-15T12:46:14.696125#523-21803860]  INFO -- : Closing session client (610840) thread
I, [2025-08-15T12:46:16.839401#518-6974340]  INFO -- : Started POST "/api/v1/signshow" for 89.244.85.232 at 2025-08-15 12:46:16 +0200
I, [2025-08-15T12:46:16.843258#518-6974340]  INFO -- : Processing by SessionsController#show as JSON
I, [2025-08-15T12:46:16.843297#518-6974340]  INFO -- :   Parameters: {"fingerprint"=>"-528574313"}
I, [2025-08-15T12:46:17.103291#518-6974340]  INFO -- : Completed 200 OK in 260ms (Views: 41.9ms | ActiveRecord: 29.5ms (375 queries, 187 cached) | GC: 19.5ms)
I, [2025-08-15T12:46:17.315293#518-7012100]  INFO -- : Started GET "/api/v1/taskbar/init?_=1755254776769" for 89.244.85.232 at 2025-08-15 12:46:17 +0200
I, [2025-08-15T12:46:17.319025#518-7012100]  INFO -- : Processing by TaskbarController#init as JSON
I, [2025-08-15T12:46:17.319132#518-7012100]  INFO -- :   Parameters: {"_"=>"1755254776769"}

Kevin202972 · August 18, 2025, 8:53am

This article describes the same problem but with OAuth2 but this dosent solve the Problem: Open Id Button shows error message after Zammad session ended instead of a login Window. · Issue #5657 · zammad/zammad · GitHub

justeverything · August 18, 2025, 12:51pm

Hey, in the link you provided it was suggested to do that:

After some testing, I can add for **Keycloak**, that setting a Backchannel logout URL resolves the issue. Heads-up: You need to turn off the "Front channel logout" in your client's general settings in Keycloak for the setting to appear

When I disable “Front channel logout” - (turn “off”, click on save and reload my browser) I’m not able to configure as described, because I don’t have the three logout-settings / options in the post.

while it should (?) look like in the post from github:

Using keycloak 26.3.2 - so should be pretty up-to-date. Maybe this is because SAML is usead instead of OICD?

Also, just turning it off didn’t help.

I set up SAML with keycloak bc there are official guides for it hoping it would work as expected - (talking about SAML with Keycloak — Zammad Admin Documentation documentation ) - so I did it exactly as described there.

EDIT - Maybe solved

It seems like when I configure Logout Service POST Binding URL in the Advanced client tab to https://zammad.domain.de/auth/saml/slo and turn off Front channel logout it looks like it’s working.

like:

So not sure If I missed that in the documentation or if it needs to be added…
