Custom Multiselect Object/Attribute Shows Key Name in Excel Report

[Isaac]

Infos:

• Used Zammad version: 5.1.0-1649253418.8274bb8a.centos8
• Used Zammad installation type: package
• Operating system: CentOS 8
• Browser + version: Firefox 98.0.2

Expected behavior:

• Generated .xls reports should show the “Display” name for custom multiselect attributes/objects.

Actual behavior:

• Generated .xls reports show the “Key” name for custom multiselect attributes/objects.
• See attached images.

Steps to reproduce the behavior:

• Reporting > Download x Record(s)
• The custom multiselect attribute in the downloaded .xls will show the “Key” name, not the “Display” name.

[domdis]

@Isaac You got MultiSelect fields to work ?

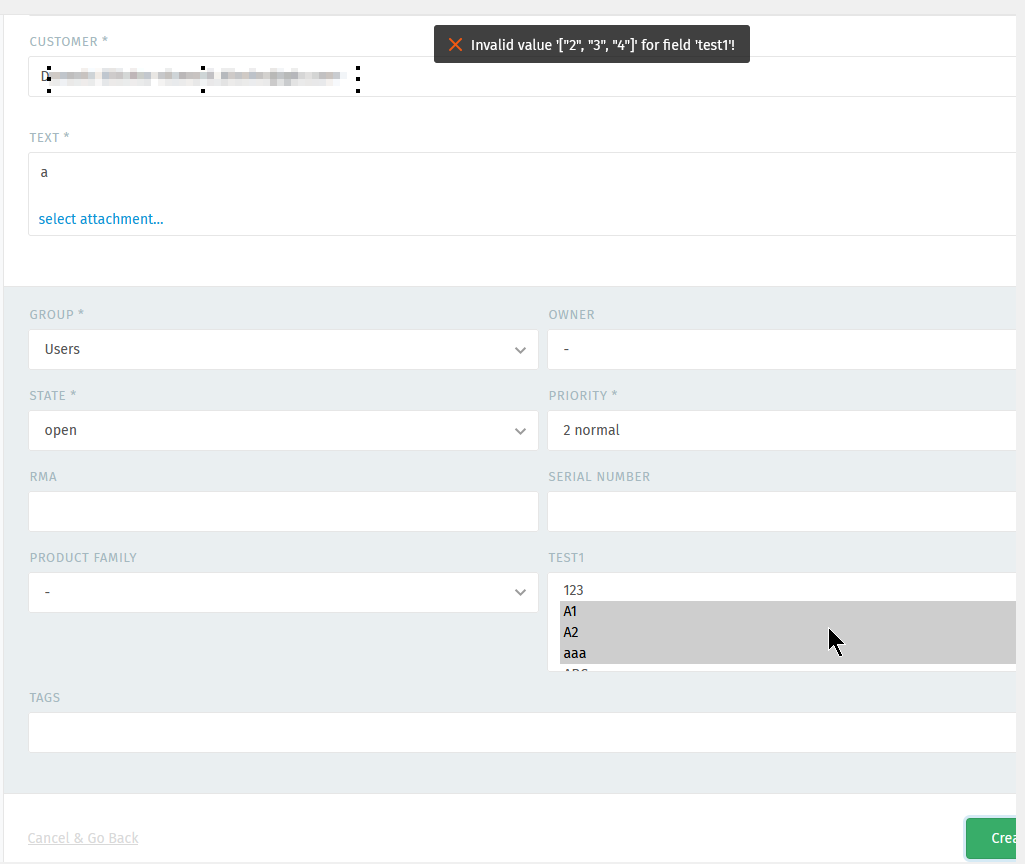

I created one and tried to use it on my tickets and it errors out when creating a ticket. I get a dark box with a red X stating Invalid Valaue ‘[“2”,“3”,“4”]’ for field test1 (see below)

Did you do anything special to make it work ?

[Isaac]

I managed to solve this problem by editing the source code. Below are the steps I took.

1. Open /opt/zammad/lib/excel_sheet.rb

2. Remove the following if statement from value_lookup:

if value.is_a?(Array)
  value = value.join(',')
end

3. Replace the first when block in value_convert with this when block:

when 'boolean', %r{^(multi|tree_)?select$}
  if object[:data_option].present? && object[:data_option]['options'].present?
    if value.is_a?(Array)
      displays = []
      value.each do |key|
        displays.push(ObjectManager::Attribute.data_options_hash(object[:data_option]['options'])[key])
      end
      value = displays.join(',')
    else
      value = ObjectManager::Attribute.data_options_hash(object[:data_option]['options'])[value]
    end
  end
  @worksheet.write_string(@current_row, @current_column, value) if value.present?

4. Restart zammad:

systemctl restart zammad

Zammad creates an array of Keys. Then it turns that array into a comma-separated string of keys (step 2 prevents this). Then it tries to get the Display value of that comma-separated string of Keys. It should try to get the Display value of each Key individually.

The code in step 3 retrieves the Display value of each Key, then joins those values into a comma-separated string.
